precision dry cleaner

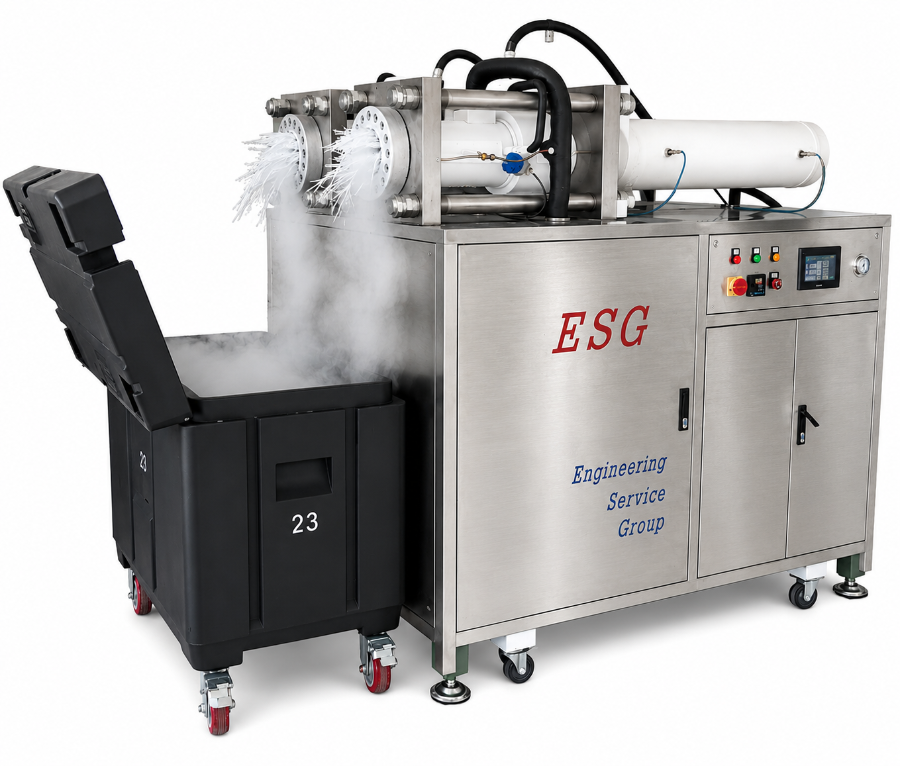

Dry Ice Pellet Maker precision dry cleaner
Characteristics
  • Driven by hydraulic pressure
  • Provides a self-diagnosis function
  • Made of materials with high durability (SUS)
  • Simple and easy to operate (touch panel)
  • Ensures long-term, massive production (eight hours)
  • Possible to apply the automatic distribution system
  • Produces high-density, high-purity dry ice pellets

Detailed Specifications



  • External Dimensions 2050 X 1200 X 2100 (L X W X H)
    Weight 1500kg
    Control Method PLC control
    Type EPT-50, 80,150,300, 500, 1000(specifications may slightly vary depending on the type)
  • Pellet Production Rate 30kg/hr, 50kg/hr, 80kg/hr, 120kg/hr, 280kg/hr, 500kg/hr, 1000kg/hr (either 1 cylinder or 2 cylinder depending on the type)
    Pellet Diameter 3mm(optional diameter : 2mm,8mm,16mm,19mm)
    Power Specification 220V / 380V (60Hz), 3ph, 45A
    LCO2 Pressure 17~20 bar
